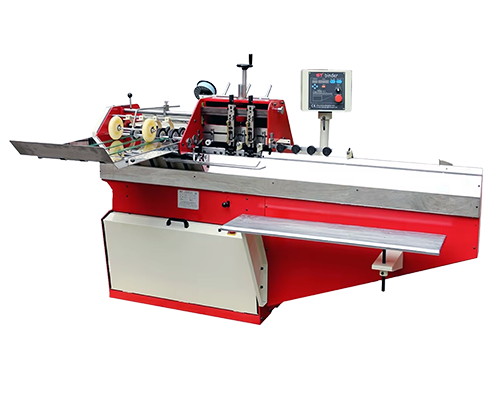

Semi-Automatic Double Head Book Stitching Machine ST-440A

Machine Information

Speed 500-5000 Sheets
Max. Case Size 440mm x 430mm
Min. Case Size 100mm x 80mm
Cutting Thickness 0.3mm to 4mm

Semi-auto Saddle Stitch Bookbinding Machine features: Micro-computer control, original U.S.A.M2000 stitching head, Italy motor, Taiwan transducer.manual and automatic operating, speed adjusting, calculating, automatically stop while paper jam happened, no stitching without paper. It is conveyed through double pusher while stitching books, all books can be protected obviously, and also can be used for some difficult and uncommon paper format, more flexibility.

Semi-auto Saddle Stitch Sewing Machine ST-440A is applicable for stitching all kinds of notebooks, booklets, magazines, poster, advertising manuals etc.

Weight 490 kg
Dimensions 2280 × 1060 × 1320 mm
Technical Specifications

Machine Parameter

Overall size (mm)2280mm x1060mm x1320mm
Weight (kg)490kg
Voltage (v)220v
Power (kW) 0.55kW
Speed500-5000 Sheets
Machine ColorRed/Beige

Technology Parameters

Max. case size 440mm x 430mm
Min. case size 100mm x 80mm
Cutting thickness 0.3mm to 4mm
