Automatic die-cutting & stripping machine features a maximum paper size of 1060mm x 760mm, minimum paper size 450mm x 440mm. The maximum cutting size is 1050mm x 750mm and the machine is able to cut up to 6,500 sheets per hour with a maximum stripping speed of 5,000 sheets per hour.
CMY1050A-P

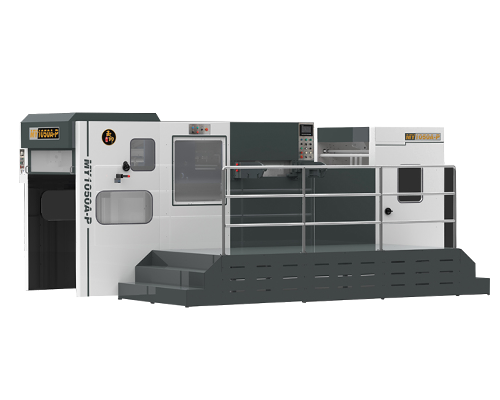

Automatic Die-Cutting & Stripping Machine CMY1050A-P
| Machine Speed | 6,500 Sheets/hour (cutting) 5,500 Sheets/hour (stripping) |
| Max. Paper Size (mm) | 1060mm x 760mm |
| Min. Paper Size (mm) | 450mm x 440mm |
| Max. Die-Cutting Size (mm) | 1050mm x 750mm |
| Cutting Pressure | 300T |
Specifications
| Max. paper size | 1060mm x 760mm |
| min. paper size | 450mm x 440mm |
| Max. Cutting size | 1050 x 750mm |
| Max.stripping speed (s/h) | 5000 (s/h) |
| Max.cutting speed (s/h) | 6500 (s/h) |
| Pressure | 300T |
| Max.feeding pile | 1300 |
| Max.delivery pile | 1340 |
| Sheet thickness (mm) | corrugated paper <4, cardboard 0.1-1.5mm |
| Total Power (kw) | 20.15 |
| Net Weight(t) | 17 |
| Overall Dimension(mm) | 5764x3867x2300 |
