Machine Details
Touch Screen Monitor System
- Display all information during operation.
- Setting function for die cutting pressure/paper insert length indications etc.
Feeder Unit
- Excellent and delicate feeder design that allows stable paper feeding.
- Preparation paper platform to enhance production and performance.
- Non-stop feeding.
- The main platform could move left and right.
Die-Cutting Station
- Safety die cutting frame design, Easy installation and dismantling. Rotation die frame.
- Design that allows easy replacement of die cutters.
- Imported excellent hardness die cut steel sheet,durable and wear and tear resistance.
Heating Plate System
- Hot stamping mould could easily adjust position any time.
- heat-resistant material and not easy deformation.
Conveyance Positioning Structure
- Push/Pull device for horizontal positioning.
- Front/back positioning adjustment during operation.
- Double sheet device.
Stripping Unit
- Residue removal upper and lower push pin. Easy installation and dismantling. Adjustment is simple and quick.
- Upper structure can be elevated or lowered depending on requirement.

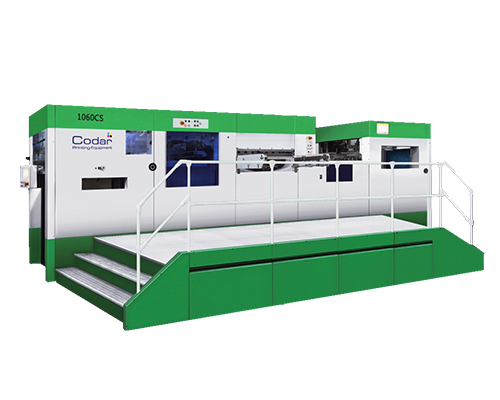

Machinery Dimension – Automatic Diecutting Platen BD-1050CS
》Diecutting & Stripping Machine
1. LCD serene dialogue window displays all kinds of information with recording and setting functions.
2. Feeder can start to feed the first sheet of paper during high speed operation with fast speed and high accuracy.
3. Adopts paper catch pincer that can ensure accuracy during high speed operation.
4. Electronic control for slight left and right adjustment of feeder platform.
5. Paper feed belt buffer structure. Thin paper can be die cut easily, quickly, and accurately.
6. Lubrication oil constant temperature control that can solve the unevenness of cold shrinkage and heat expansion problem and can also protect machine from wear and tear.
7. Electronic control digital display for die cut pressure. Operation is easy, clear and fast.
8. Imported excellent hardness die cut steel plate. Solid and durable and is hard to be damaged.
9. Die cut pressure protection device. Automatic shutdown when pressure is over 300 tons so as to ensure mechanical safety.
10. Electronic control air pressure type for wedging of die frame. Speedy, light and easy operation.
11. European main chain and vacuum pump. Durable and not easy to be damaged.
12. Comes with non-stop feeding and delivery with automatic subsidiary paper collection rack. Speedy automatic conversion.
| Thickness of the gilt paper | 120g/㎡ ~ 2000g/㎡ |
| foil pulling shafts （optional） | 3 shafts (6 shafts) |
| max. foil diameter | 200mm |
| max. rewind diameter | 250mm |
| foil width | 25mm ~ 1020mm |
| maximum.thickness foil plate | 7mm |
| adjustable temperature | 50℃ ～ 180℃ |
| max.hologram stamping area | 1020mm × 730mm |
| paper front fringe & foil membrane gap | 14mm × 23mm |
| heating zone | 12 |
| max.foil stampspeed | 6000 s/h |
| max.hologram stampong speed | 5000 s/h |
| honeycmb | 1 pes |
| foil stamp power required | 24kw |
| rewind shafts （optional） | 6 shafts (12 shafts) |
| Hologram register unit | 3 shafts |
| Stripping unit | 1 unit |
| max. paper size | 1050mm × 750mm |
| min. paper size | 400mm × 370mm |
| max. die cutting size | 1040mm × 730mm |
| max. cutting pressure | 300tons |
| min./max. thickness paper | 80g/㎡ ~ 1500g/㎡ |
| max. corrugated board | 4mm |
| min. gripper margin | 8mm |
| max. machine speed | 7500 Sheets/hr |
| inner size of chase | 1145mm × 755mm |
| size of steel plate | 1080mm × 736mm |
| max. feeder overlap height （with platform〉 | 1250mm |
| max. delivery overlap height（with platform） | 1150mm |
| machine total power | 20kw |
| machine length | 7060mm |
| machine width | 2750mm |
| machine height | 5164mm |
| machine weight〈approx.〉 | 18 tons |
