CF-1156M
CF1156 Micro Computer High-Speed Paper Cutting Machine

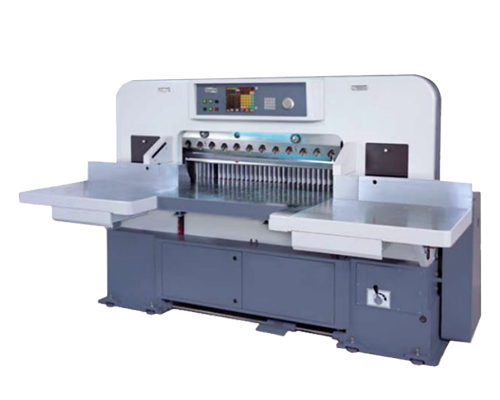

Micro Computer High-Speed Paper Cutting Machine CF-1156M

Cutting Height 150mm
Cutting Width 1156mm

Cutting Length Max.

  1156mm

– Min w/o false clamp

  25mm

– Min with false clamp

   90mm
Description

Features:

  • PLC Control system
  • Servo Motor Controlled backgauge measurement
  • Multi function Micro-Computer LCD control panel
  • Adjustable clamp pressure
  • Cutting line indication
  • Knife hook for fast knife changed
  • Two pressure
  • Sensitive Infra-Red hand guard
  • Chromed table & air table
Technical Specifications
Cutting Height 150mm
Cutting Width 1156mm
Cutting Length Max. 1156mm
- Min w/o false clamp 25mm
- Min with false clamp 90mm
Front Table L/R Width 820mm
Front Tabble L/R Length 670mm
Front Table Length 605mm
Table Height 870mm
Total Machine Width 2,710mm
Total Machine Length 2,590mm
Total Machine Height 1,610mm
Clamp Pressure 200~400kgs
Cutting Speed 40/Min
Net Weight 3,500kg
Power Required (main) 5 Hp
Hydraulic 2 HP
Backgauge Motor 1/2 HP
Air Table Motor 1/2 HP
