Feeder Unit
- High quality feeder made in Taiwan with 4 suckers for lifting paper and 4 for forwarding paper to ensure stable and fast paper feeding.
- Optional: German Mabeg Feeder/Preload device, non-stop feeding, with max pile height up to 1600mm. The preload device is equipped with guilding rails that enable the operators to move the prepared pile to feeder accurately and conveniently.
- Vacuum pump – German Becker.
Side lays can be adjusted between push and pull lays to mete different kinds of paper. - Side and front lays rail with precise photocells whose sensitivity is adjustable.
- The anti-obstacle device is adopted to prevent the machine from damage. Paper feeding will slow down when the paper is about to reach front lays to achieve more accurate paper position. Japanese NITA convey belt and its speed is adjustable. German made stainless steel is used for convey board to achieve smooth and quick transportation.
- Operation panel with LED display is easier to control the feeding process.
Double cam gripper bar system, offered by KOMORI. Double cam gripper bar could deliver the smoothest sheet acceleration and deceleration. Each movement of the gripper bar is perfectly controlled. Suitable for a wider range of paper and higher speed.
Automatic lubrication system. Through the touch screen you could set the time and quantity to lubricate.
Japan Sankyo index box.
19″HD touch screen equipped. All the setting and function could be easily set through this touch screen Unique operation system based on the special knowledge of the machine
The operating system uses the humanized design The parts and parts of the feeder can be controlled by the computer system. Computer angle can be adjusted
according to the operator’s own visual requirements.
Adopt the famous brand of electrical components, e.g
Pilz safety module, Muller replay, Schneider inverter and air switch etc.
This machine is used in famous brand electrical components, including PIL Z safety relay. Muller relay, Schneider inverter contactor and air switch.
Quick center positioning Plate location memory
Original Japanese Gripper, more durable.
Dimensions

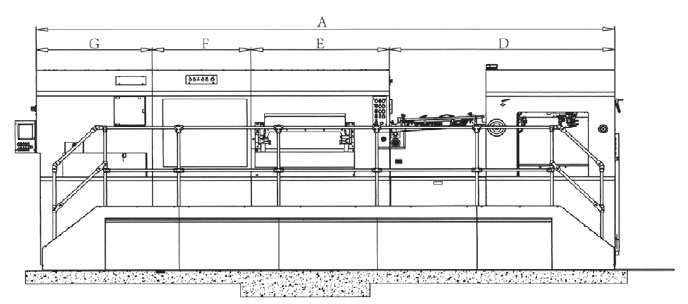

Front

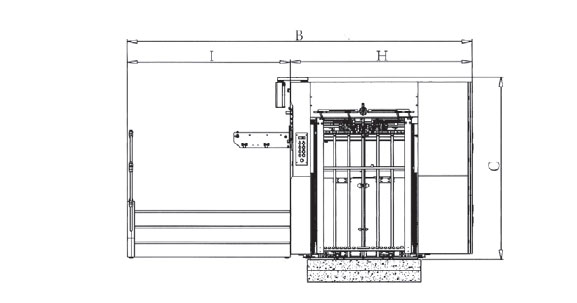

Side

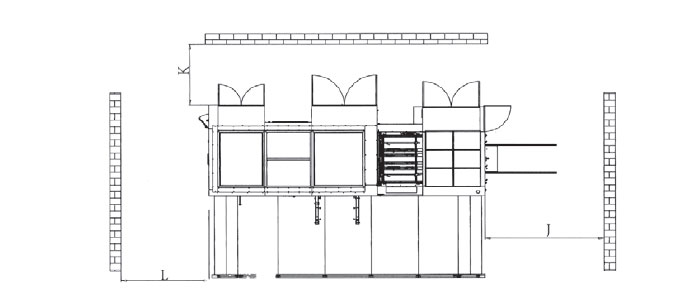

top
SPECIFICATIONS
| Model | 1060C | 1060CS |
| Max. Sheet Size | 1060x760mm | 1060x760mm |
| Min. Sheet Size | 450x370mm | 450x370mm |
| Max. Die-Cutting Size | 1045x745mm | 1045x745mm |
| Die Size | 1100x770mm | 1100x770mm |
| Cutting Plate | 3+1 | 3+1 |
| Height of Die-Cutting Rule | 23.8mm | 23.8mm |
| First Cutting Rule | 23mm | 23mm |
| Gripper Margin | 7-17mm | 7-17mm |
| Carton Board | 90-2000g/m2 | 90-2000g/m2 |
| Carton Board | 0.1-3mm | 0.1-3mm |
| Corrugated Board | ≤4mm | ≤4mm |
| Max. Cutting Force | 300T | 300T |
| Max. Die-Cutting Speed | 7,500/Sheets/Hour | 7,500/Sheets/Hour |
| Feeder Pile Height (including pallet) | 1600mm | 1600mm |
| Delivery Pile Height (including pallet) | 1350mm | 1350mm |
| Main Motor Power | 11kW | 11kW |
| Total Power | 17kW | 17kW |
| Voltage | 380±5% V | 380±5% V |
| Cable | 10mm2 | 10mm2 |
| Compressed Air | 6-8 bar | 6-8 bar |
| Airflow | 200L/M | 200L/M |
