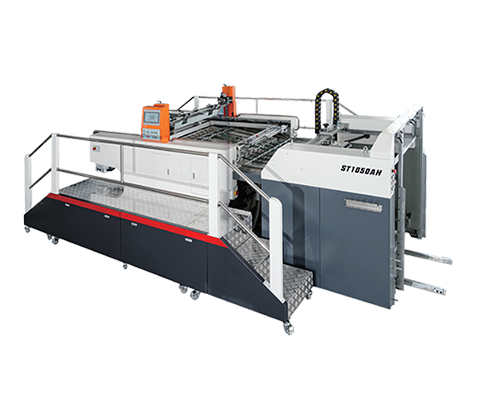

ST-1050AH Automatic Stop Cylinder Screen Press Printing Machine
Details
- On both sides of the machine are equipped with pushing lays, drawing lays and photoelectric monitors to meet both sides printing requirement for the paper of different weight. The accurate registration is ensured by the pushing or drawing lays driven by the upper and lower cams, which can push and draw the printing sheets to the right position. According to different printing sheets, the use of pushing and drawing lays can be exchanged freely.
- The pushing and drawing device on the screen master frame and the screen plate fine-adjusting device are used for setting the right screen frame position for the purpose of accurate registration.
- The screen frame is designed to be a drawer and it can be drawn out as a whole. It is not only convenient for the cleaning, mounting and dismounting the frame, but also for the calibration and adjustment between the screen plate and the printed sheets.
- Together with the screen plate frame the new designed drip tray is drawn out at the same time to prevent the remaining ink on the ink reclaiming blade and squeegee blade dropping onto the cylinder.
- The new front stopper and fat press tongue Design has replaced the traditional the hook front gauge, and the roller and brush feeding has replaced the traditional steel and glass ball feeding. And each roller and brush has a separate self-locking worm adjusting device. The paper feeding table has the function of vacuum adsorption especially for the thin printing materials, so that the printing products can follow the paper table to the photoelectric tracking of the front gauge of the roller to guarantee the high-grade printing without scratches.
- The machine can be running in sheet-fed or stream-fed mode according to different printing sheets. The feeding board with vacuum suction function feeds the paper to the end stop of the Cylinder smoothly, especially for those thin paper.
Features
- High speed: The maximum speed of 4000 p/h can raise production efficiency.
- High registration accuracy: It ensures high quality printing.
- Thin paper printing: Accurate printing material of 0.075mm thickness allows your business scope expanded.
- Zero reject：The photocell eyes refuse wrong positioned paper, which makes your waste cost to be zero.
- Smooth running: The long service life of the machine resulting from smooth and reliable running increases your investment benefit.
Production Line Optional Configurations
The ST1050AH is an automatic stop-cylinder Screen Press Printing machine with configurations for Cold Foil, Cast & Cure, UV / Spot UV, Thick Matt UV, Wrinkle, and Snowflake finishing.
UV Curing Machine
ST-1200B
Snowflake Curing Machine
ST-1200SF
