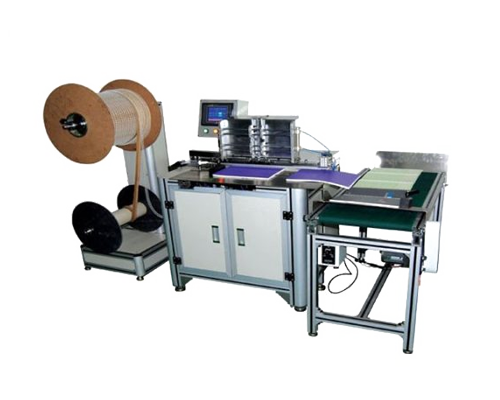

Semi-Automatic Double Wire Binding Machine HBC-520

Machine Information

Working Speed/Hours  2,000 Books/Hour
Max. Binding Width 507mm
Wire Diameters 8mm to 19mm

1/4″ to 3/4″

Pitch 1:2, 1:3
Max. Paper Width 520mm
Min. Paper Width 75mm

HBC 520
Semi-Auto-Double-Wire-Binding-Machine-HBC-520-500x400

Functions:

  • Automatic Cutting, Insertion & Closing
  • Can bind up to 2,000 Books per Hour
  • Double Wire Diameters 1/4″ to 3/4″ (Pitch 1:2, 1:3)
  • Book Width: 75mm to 520mm
  • Auto Hanger Attachment
  • Multi-function Error Message Display
Technical Specifications
Working Speed/Hours  2,000 Books/Hour
Max. Binding Width

507mm
Wire Diameters

8mm to 19mm

1/4″ to 3/4″
Pitch

1:2, 1:3
Max. Paper Width 520mm
Min. Paper Width 75mm
Power  220V /1ph/50Hz/ 0.2kW
Air Compressor 1.5kW
Air Pressure 6-8 bar / 87-116 psi
Net Weight (kg)  510kg
Dimension (mm) 1800mm x760mm x1230mm
