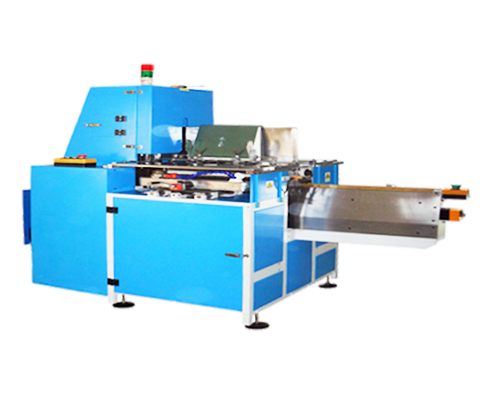

Hard Cover Book Case in-Machine MC-380A machine is designed to reduce time time consuming, low efficiency process for producing hard cover book in small or medium scale. This semi auto casing-in machine can apply glue on both side of book evenly and glued to the cover percisely.
Machine Information
| Work Speed | 7 to 12 pieces per minute |
| Size (Max.) | 360mm x 250mm |
| Size (Min.) | 90mm x 60mm |
MC380A
Technical Specifications
| Model | MC 380/380A | MC 520 | MC 560 |
|---|---|---|---|
| Power supply | 380V / 50Hz | 380V / 50Hz | 380V / 50Hz |
| Power | 1.5KW | 1.5KW | 1.5KW |
| Work Speed | 7-12pcs / minute | 7-12pcs / minute | 7-12pcs / minute |
| Size (max.) | 360 x 250mm | 520 x 380mm | 560 x 450mm |
| Size (min.) | 90 x 60mm | 90 x 60mm | 90 x 60mm |
| Machine Dimension (LxWxH) | 1,500 x 700 x 1,600mm | 2,000 x 1,100 x 1,800mm | 2,000 x 1,100 x 2,000mm |
| Machine Weight | 350kg | 400kg | 450kg |
