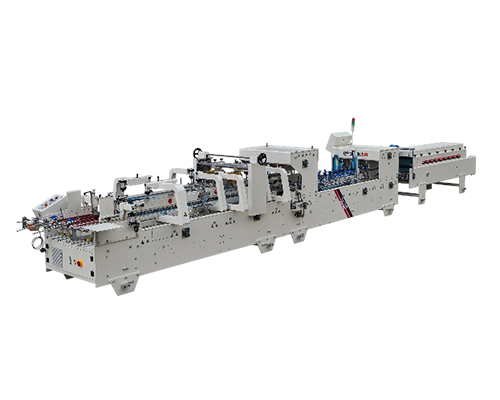

This Pre-fold & Lock Bottom Box Folder Gluer Machine is used for paperboard shaping and adhesive processing after cutting horizontally. Its universality is strong and suitable scope is wide, which can fold and paste various straight seaming box and bottom edging box.
Pre-fold section is applied to auto packaging, fold 1 and fold 3 of all cartons can reach 180° and 135° ,perfectly combing the requirements of auto packaging together.
It is widely used in food, medicine, cosmetics, stationery and other ordinary cartons, process and glue for all kinds of bottom-locked cartons.
PRE-FOLD
Double-board structure with a set of pre-folding knife.
Pre-fold angle is 180˚ and 135˚, especially suitable for small but high cartons, more satisfactory while rapid prototyping.
FOLDING
Lengthened folding to avoid the unevenness while the rapid forming of cartons and make it come to perfection.
FEEDING
6 pcs adjustable feeding belts to ensure easy adjustment, stable and smoothly feeding. Continuously Variable Speeder to ensure feeding internal and stable transmission. One-touch Pneumatic knife, easy for the adjustment of feeding belts.
TRANSMISSION
Equipped with feeding paper inspection device. Equipped with impacting device to press the paper after accounting and make it easy to pack paper.
Bottom Lock
3-board tracking structure, upper gluer can make bottom-locked box automatic gluing and forming, can be used for the special-shaped cartons. The entire bottom-lock part is installed in a reversible bracket, substantially reduce the swap Adjustment time of bottom-fold box and the other types of box. Bottom-folding speed is 50-200 pcs per min, stable and reliable.
FULL PRESSING
2-board structure Two modes for pressing belt speeding:
Auto: set distance between boxes, pressing belt speed is the same as the machine, belt removes while sensor detect it.
Manual: pressing belt conveys in a fixed speed and machine speed will not put any effect on it. With counting device to count the finished boxes to match with boxes regulating, easy to count and pack.
| Model | 900 |
| Paper Material | Cardboard 200-800g E-fluteE / F-fluteF |
| Max. Liner Speed | Max. 280 meter/minute |
| Way of Folding | Fold 1 and fold 3 are 180° & 135˚ Fold 2 and fold 4 are 180° Bottom folded and gluded |
| Glue Material | Water-base cold glue |
| Electric Power | 7.5 KW / 380V 50HZ 3P |
| Weight | 3550KG |
| Dimension | 12500 x 1400 x 1400mm |
LOCK BOTTOM CARTON TYPE AND FOLDED BOX
| TYPE | CARDBOARD | E/F CORRUGATED |
| A | 150-600 mm | 150-600 mm |
| B | 200-850 mm | 200-850 mm |
| C | Min: 30 mm | Min: 30 mm |
| D | Min: 70 mm | Min: 70 mm |
| E | Min: 30 mm | Min: 30 mm |
| F | Min: 80 mm | Min: 80 mm |
TWO-SIDE GLUING BOX
| A | 100-550 mm |
| B | 100-800 mm |
| C | 70-600 mm |
| D | 10-200 mm |
COMMON BOX TYPE AND SIZE
| TYPE | CARDBOARD | E/F CORRUGATED |
| A | 150-700 mm | 150-600 mm |
| B | 120-850 mm | 200-850 mm |
| C | Min: 10 mm | Min: 30 mm |
| D | Min: 70 mm | Min: 70 mm |
| F | Min: 80 mm | Min: 80 mm |
POP CORN BOX TYPE AND SIZE
| A | 150-600 mm | |
| B | 180-850 mm | |
| C (Min) | 40 mm | |
| D (Min) | 35 mm | |
| F (Min) | 20 mm |
FRENCH FRIES BOX TYPE AND SIZE
A | 240-350mm |
B | 190-250mm |
C | 100-130mm |
D | 85-110mm |
CD BOX TYPE AND SIZE
A | 500-850mm |
B | 100-700mm |
