Three-Knife Trimmer QS100C

Machine Information

Max. Cutting Size 420mm x 300mm
Min. Cutting Size 80mm x 80mm
Max. Cutting Height 100mm

QS100C

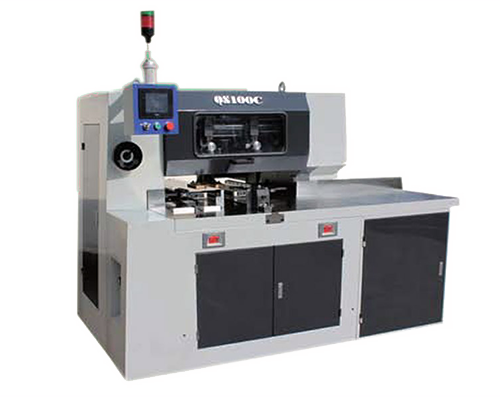

QS100C Three Knife Trimmer

Three-Knife Trimmer QS100C Features:

  •  Automatic lubrication system with less maintenance; program controlled, easy to operate.
  • Two hand Cutting system and cutting delay system make cutting process safe
  • Two arm pusher provide smooth and stable delivery of books at belt.
  • High cutting precision.
  • 2 sets of knife frame for fast job change over.
Technical Specifications
Max. Cutting Size 420mm x 300mm
Min. Cutting Size 80mm x 80mm
Max. Cutting Height 100mm
Min Cutting Book Height 8mm
Min. Single Cutting Height 5mm
Cutting Speed 28/min
Machine Power 4kW
Machine Width 2250mm
Machine Length 2300mm
Machine Height 1750mm
Machine Weight 2,300kg
