| Paper Size: | 420mm x 420mm (Max.) 170mm x 150mm (Min.) |
| Max. Punching Thickness | 2mm |

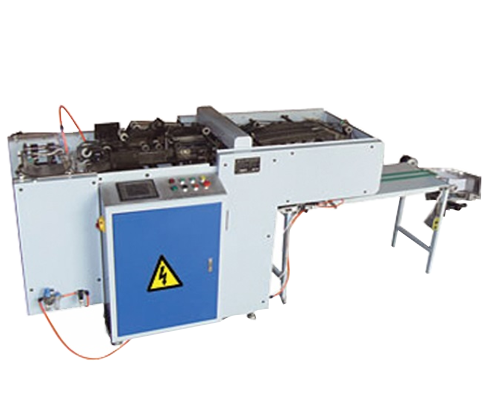

The CK-420 Automatic Hole Punching paper machine is specialized in paper board punching for calendar, notebook, exercise book, gray cardboard, PP board and etc.
This machine can automatic feed paper and transfer by conveyor belts into punching mould for punching hole. After that, the papers will arrange according to the order. The paper size and page margins can be adjusted. Punching paper machine can punch various holes by replacing different shapes and sizes punching mould.
| Max. Size (W x L) | 420 x 420mm |
| Min. Size (W x L) | 170 x 150mm |
| Max. Punching Thickness | 2mm |
| Max. Stack Thickness | 600mm |
| Paper Specification | 60-200g/m2 |
| Max. Working Speed | 7,200/Hour |
| Collecton Style | Life Style and Converyor Belt Style for Choices |
| Power | AC380V / 3ph / 50Hz / 3KW |
| Machine Dimensions (L x W x H) | 2,200 x 1,000 x 1,300mm |
| Machine Weight | 800kg |
| Air Compressor (Excluded) | 0.37kw |
| Air Compressed | 4-6bar |
