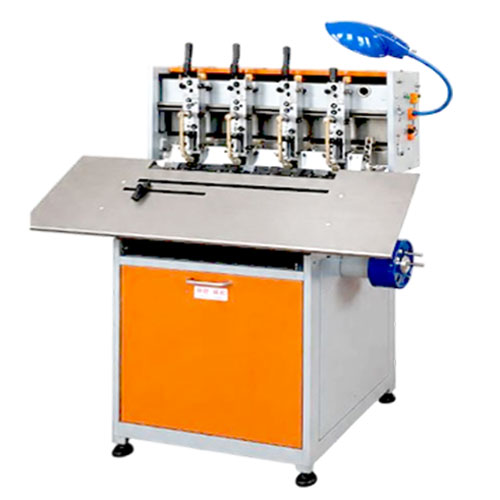

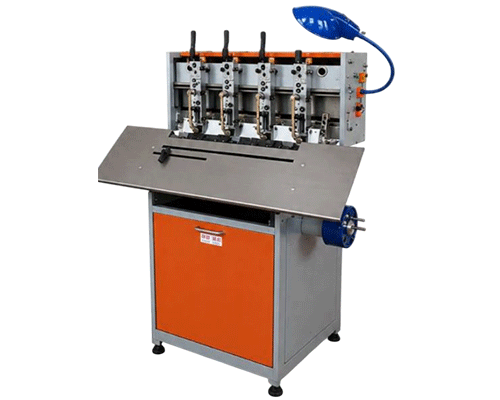

DTD-8 Variable Frequency Speed Control Stitcher
DTD-8 is a high-performance stitching machine deisgned for bookbinding and printed material finishing. It delivers stable operation, adjustable speed control and excellent stitching quality.
这是平订,也可以骑马订,两种功能。
This is flat stitching, and it can also do saddle stitching. Two functions in one machine.
Video
Specifications
DTD-8 (VARIABLE FREQUENCY SPEED CONTROL STITCHER)
| Binding Speed | 80 / 100 / 120 Sheets per minute |
| Binding Thickness | 0.2 – 10 mm |
| Binding Width | 13 mm |
| Max. Binding Size | 450 x 310 mm |
| Stitching Type | Flat Saddle Stitch / Saddle Stitch |
| Wire Specification | 23# Steel Wire (0.14 – 0.8 mm) |
| Main Motor Power | 0.55 kW 220V 50Hz |
| Machine Weight | 200 kg |
