Hard Cover Book Case in Machine MC 380A
Description
Product Description

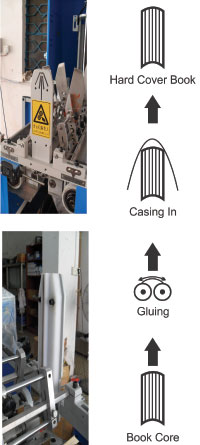

This machine is designed to reduce time time consuming, low efficiency Process for producing hard cover book in small or medium scale. This semi auto casing in machine can apply glue on both side of book evenly and glued to the cover percisely.
Technical Specification
| Model | MC 380/380A | MC 520 | MC 560 |
|---|---|---|---|
| Power supply | 380V / 50Hz | 380V / 50Hz | 380V / 50Hz |
| Power | 1.5KW | 1.5KW | 1.5KW |
| Work Speed | 7-12pcs / minute | 7-12pcs / minute | 7-12pcs / minute |
| Size (max.) | 360 x 250mm | 520 x 380mm | 560 x 450mm |
| Size (min.) | 90 x 60mm | 90 x 60mm | 90 x 60mm |
| Machine Dimension (LxWxH) | 1,500 x 700 x 1,600mm | 2,000 x 1,100 x 1,800mm | 2,000 x 1,100 x 2,000mm |
| Machine Weight | 350kg | 400kg | 450kg |
